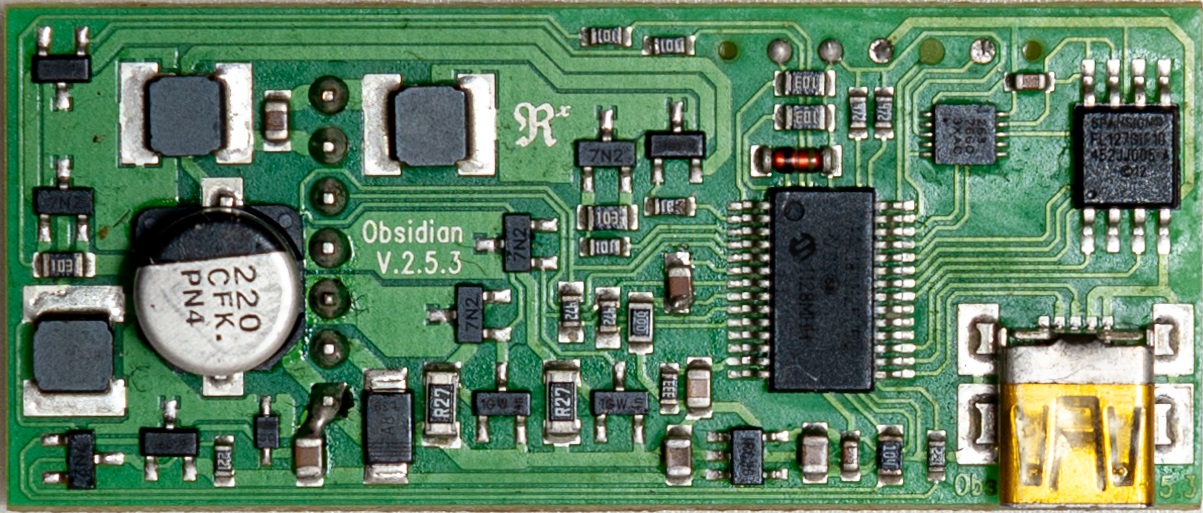

Obsidian Sound Board
Motion-controlled sound board for electronic sabers
- Motion detection with digital accelerometer
- Button and motion controlled lightsaber sound effects: Power On, Hum, Swing, Clash, Lockup, Power Off
- Internal storage for up to 16 sound fonts
- Dual-channel LED switch

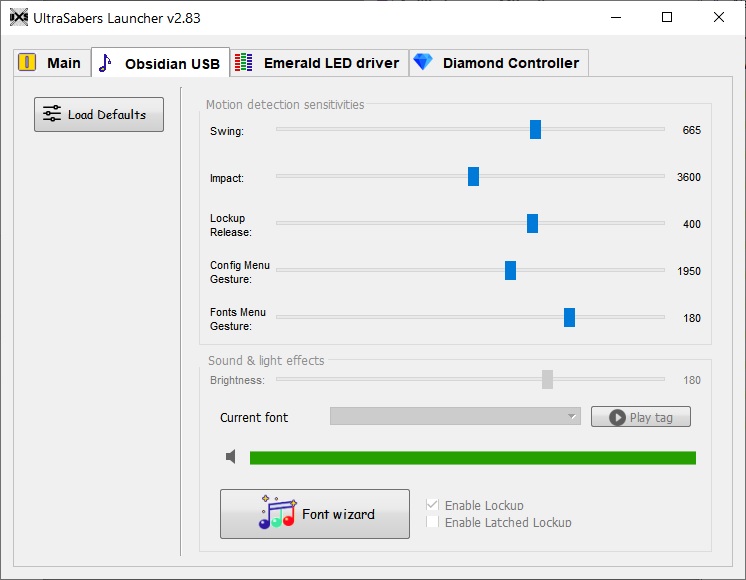

- Sounds and settings configurable from MAC and Windows computers, through the USB port (Obsidian USB only)

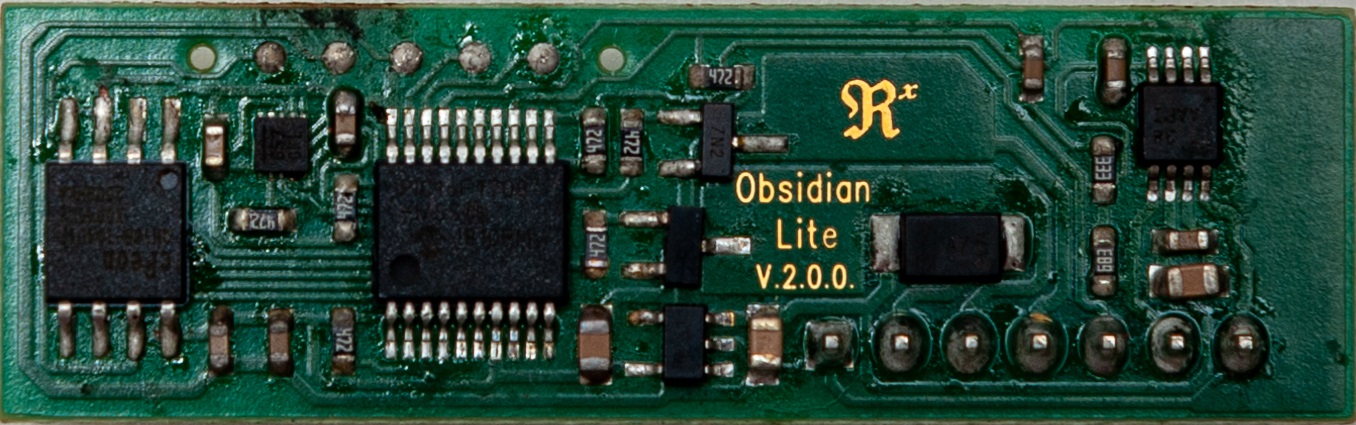

| Obsidian Lite | Obsidian USB3 | Obsidian USB4 | |
| Operating voltage | 3.5 – 5.5 [Vdc] | 3.5 – 9 [Vdc] | 3.5 – 9 [Vdc] |
| Maximum LED current | 1.5 [A] | 1.5 [A] | 1.5 [A] |
| Audio power @ 8 ohm | 1.2 W | 1.5 [W] | 1.5 [W] |
| Sound memory | 2 [Mb] | 4 [Mb] | 16 [Mb] |
| Sound fonts | 1 | 1 | 1 – 16 |
| Configuration port | — | USB | USB |
